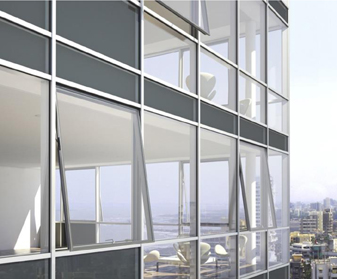

Troptec SC50 NI

FEATURES

• Proven quality in accordance with AAMA system testing
• 3 drainage levels, reliability due to overlapping drainage principle
• Flexible system with attachment detail solutions (building) and interfaces (insert units, external solar shading)
• Time-saving ladder construction with spring bolt T-cleat

Parameters	Values
Face width	50mm
Maximum Weight	Standard glass load upto 150Kgs, large glass loads upto 300Kgs
Glass Thickness	Single Glazing - 5/6/8mm, Insulating Glass -18-32mm

Parameter	Testing Value	Testing Standard
Wind load resistance	2650 Pa	ASTM E 331
Static Air Leakage Infiltration	600 Pa	ASTM E 283
Static Water Penetration	720 Pa	ASTM E 331
Airborne sound insulation	Upto 50 dB, depending on glazing thickness	DIN EN 14351-1

Thermal transmittance in accordance with DIN EN ISO 10077

Glass Thickness (mm)	Height x width (m)	Profile depth	Face width	Uf	Ucw	Ug
5	1.35 x 2	120	50	6.03	5.8	5.8
18	1.35 x 2	120	50	3.2	3.8	3.3
22	1.35 x 2	120	50	3.13	3.7	3.3
24	1.35 x 2	120	50	3.03	3.7	3.3
