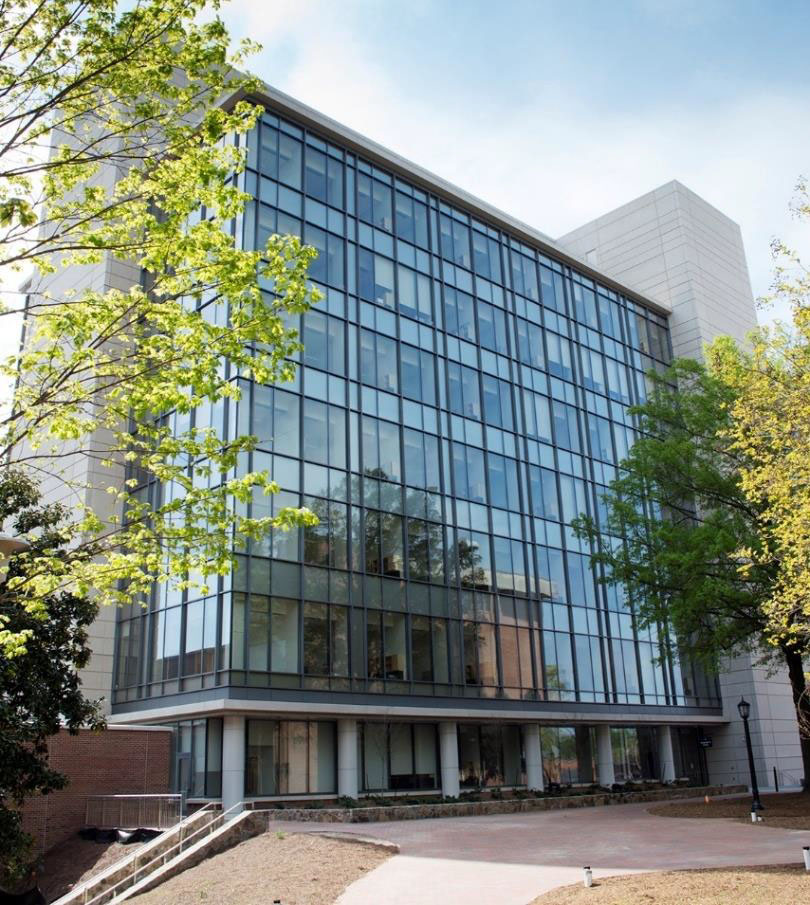

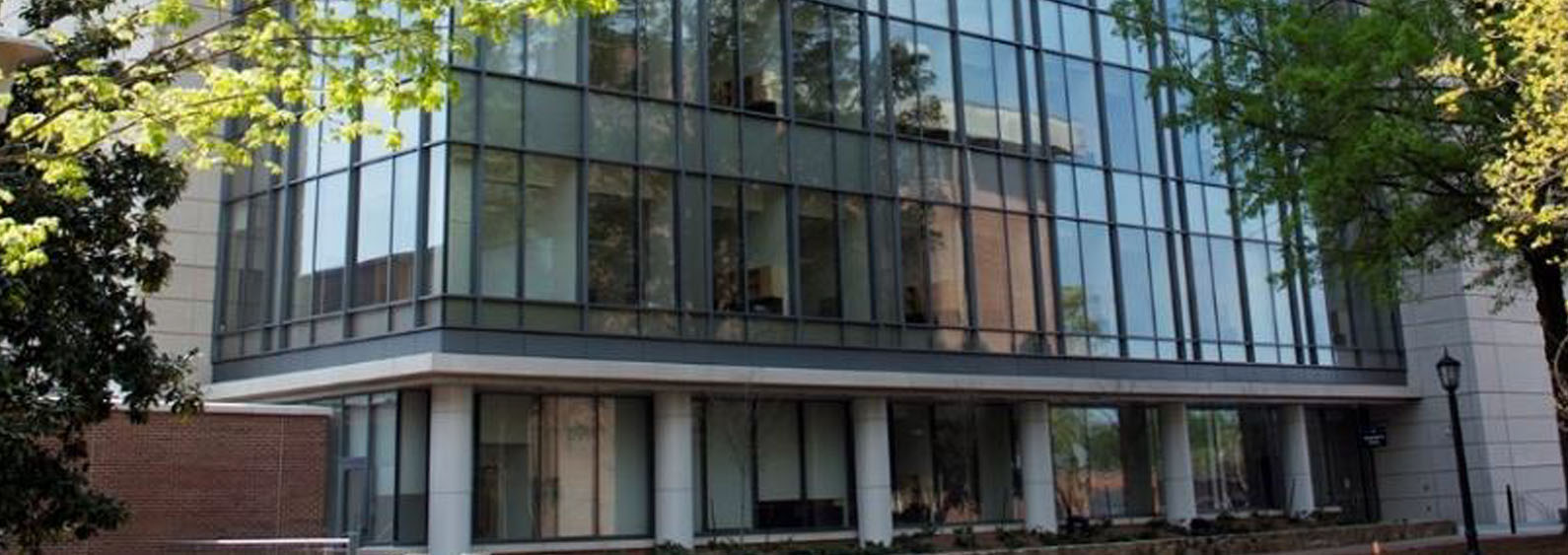

FWS 60

FEATURES

• Transom and mullion profiles are available in graduated dimensions to meet varying structural requirements
• All load-bearing profiles have a narrow face width of 60 mm and have small radiused edges
• Special profiles are available for vapour barrier and wall attachment and for attachment to existing substructures, plus a range of insert units (block vents, ventilation vents, doors, roof vents, block constructions) and façade fixing brackets

Parameters	Values
Face width	60mm
Dimensions	Level 1 transom, 6 mm - 205 mm basic depth Level 2 transom, 84 mm - 149 mm basic depth Level 3 mullion, 50 mm - 250 mm basic depth
Maximum Weight	Glass load upto 910Kgs
Glass Thickness	4mm - 62mm

Parameter	Testing Value	Testing Standard
Air Permeability	Class AE (>600 Pa)	EN 13830
Water tightness	Upto Class RE1200 (>600 Pa)	EN 13830
Windload	2000 Pa	EN 13830
