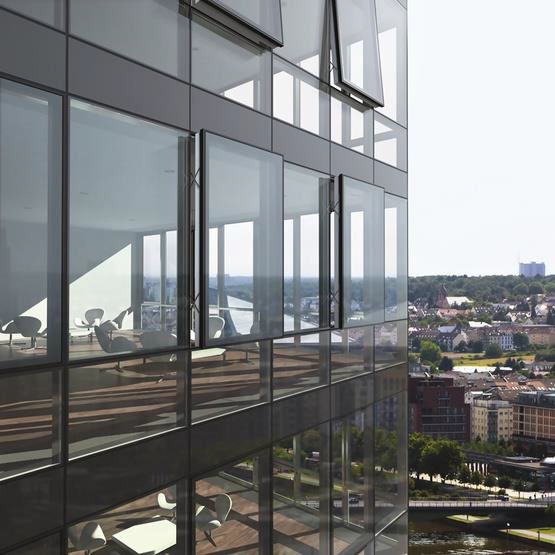

AWS - 114 Parallel window

FEATURES

• Seamless visual integration without compromising the uniform façade geometry
• Opening types: projected top-hung and parallel-opening window
• Can be used in the following façade systems:
  1. FW 50+ /FW 60+, FW 50+ SG/FW 60+ SG, Schüco USC 65, Schüco UCC 65 SG, Schüco AOC, FWS 35 PD
• Two glazing types:
  1. Structural glazing: Stepped insulating glazing with UV-resistant edge seal, bonded with silicone at position 2
  2. Standard insulating glass with continuous glazing bead
• Outer and vent frames are joined in the workshop and are installed as a complete unit on the construction site
• Optional RC 2 burglar resistance using additional fittings components

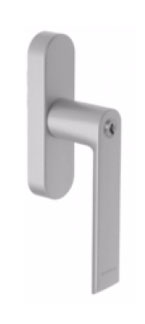

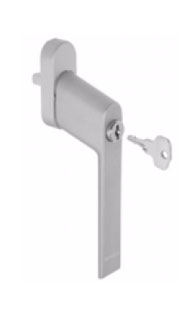

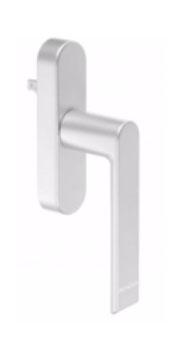

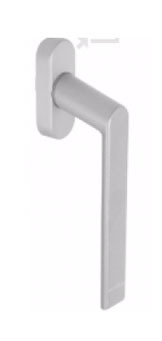

Handle Options	Gearbox Handle	Gearbox Handle, Lockable	Window handle	Lockable window handle
Colors	Silver Look, RAL 9005	Silver Look, RAL 9005	RAL 9005	RAL 9005
