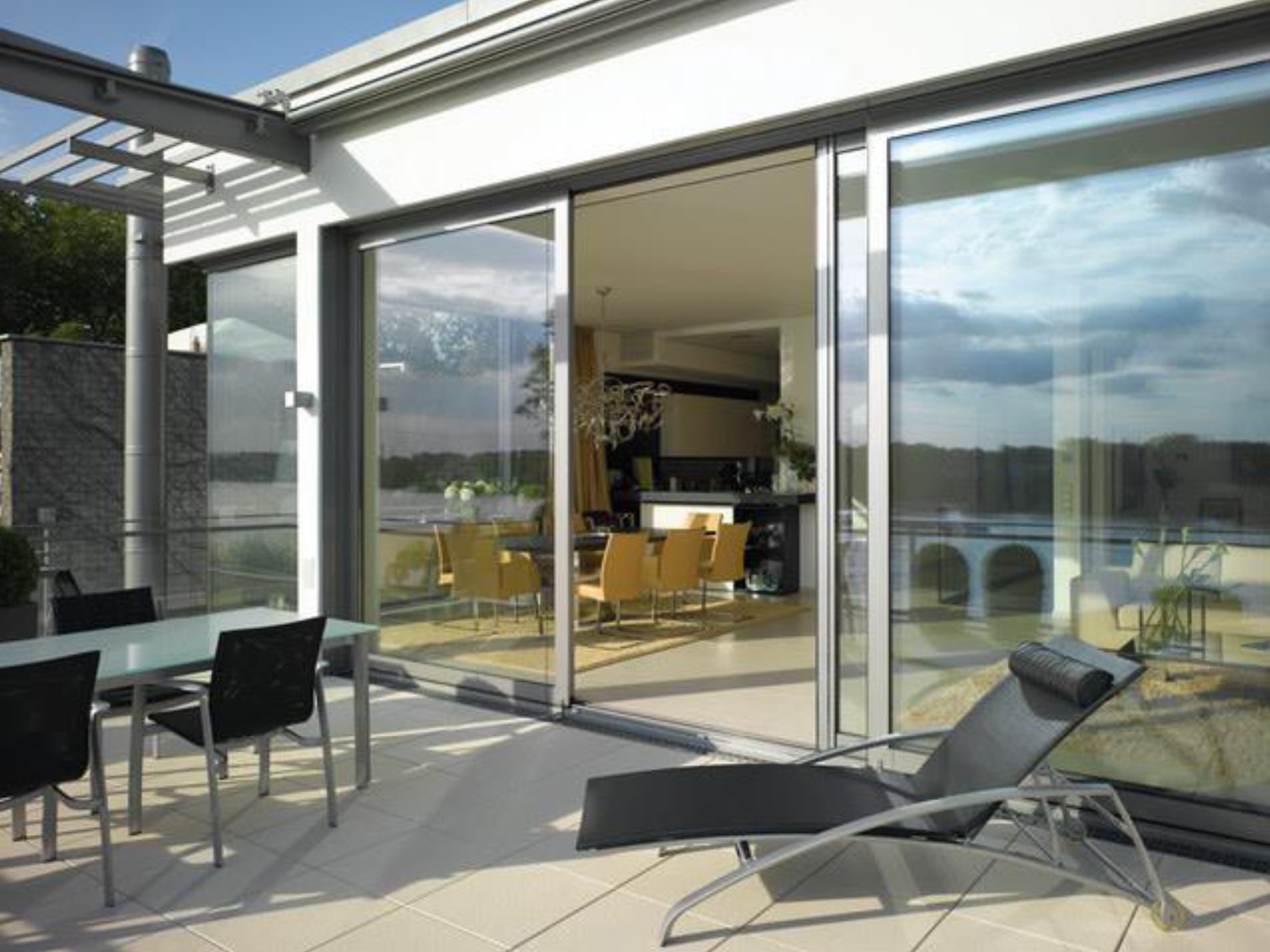

ASS 50

FEATURES

• Sliding and lift-and-slide series with narrow profile face widths
• Flat outer frame profile as continuous frame
• Wide choice of colours, different colours inside and outside

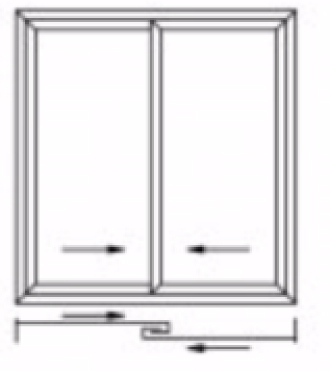

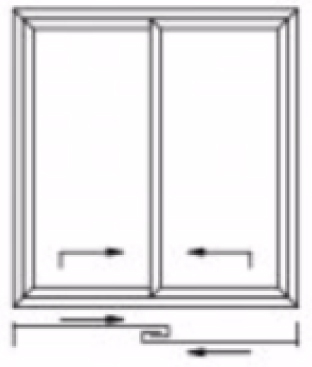

• Wide range of designs based on single, double and triple track outer frames
• The construction can be integrated with side lights, side lights or spandrel fields in the series Schüco AWS 50 or AWS 65.

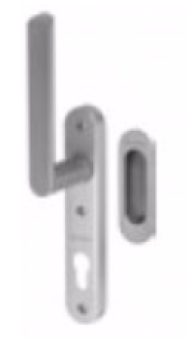

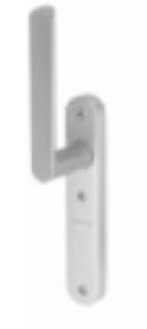

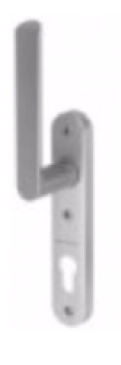

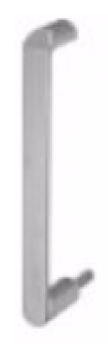

Handle Options for Sliding System
Types of handle	Handle without profile cylinder recess	Handle without profile cylinder recess, with handle recess	Handle with profile cylinder recess	Handle with profile cylinder recess, with handle recess
Color	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX

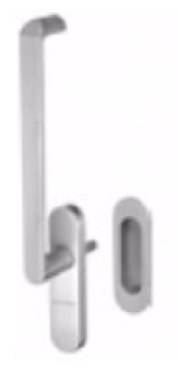

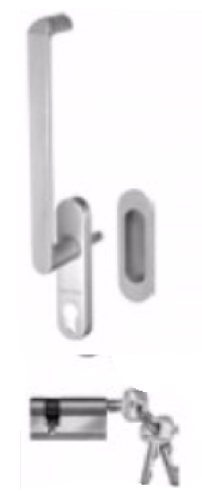

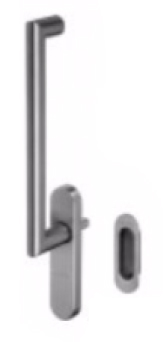

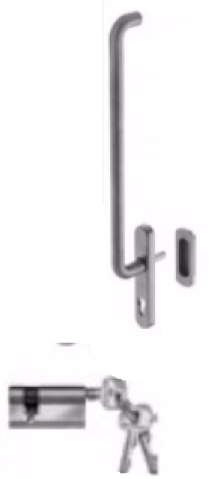

Handle Options for Lift and Slide System
Types of handle	Crank handle without profile cylinder recess, with handle recess	Crank handle with profile cylinder recess, with handle recess	Crank handle without profile cylinder recess, with handle recess	Crank handle with profile cylinder recess, with handle recess	Crank handle removable
Color	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX
